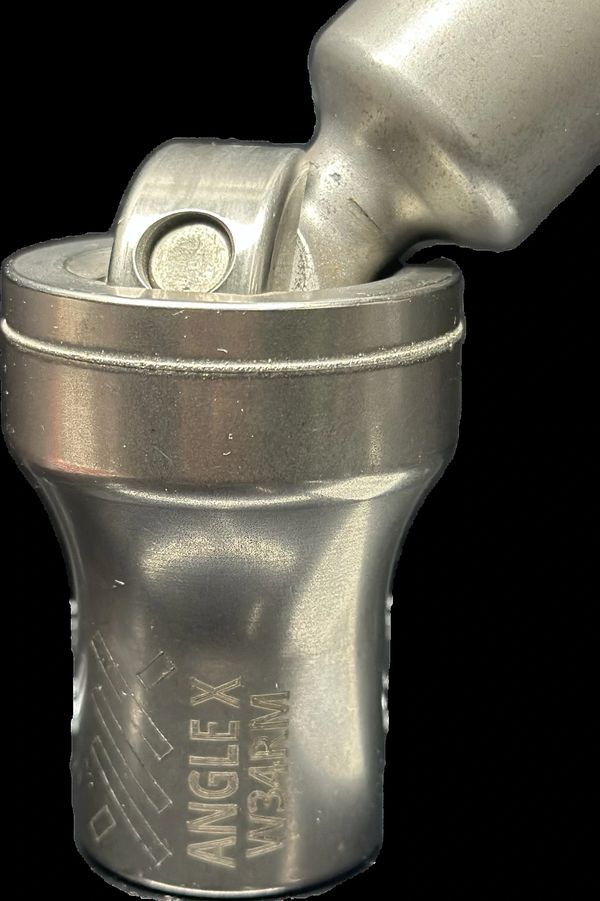

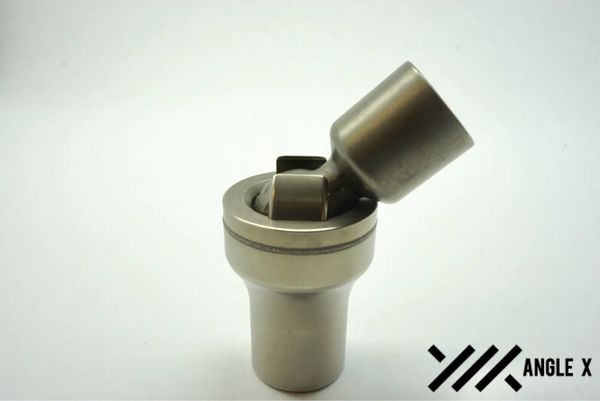

45-degree Ball-and-socket U- joint

45-degree angle ball & socket X-joint. High angle 3\4" weld on both ends. 100% made out of 4340 metals heat treated. Patented design 100% made in the USA.

Free shipping to lower 48 states.

Smooth bore

Angle X Manufacturer Part Number-Joint 300-34-34-S

 X-joint Material 300M Carbon Steel

System of Measurement Inch

 Coupling Overall Length 3 1/2 in

Bore Diameter 3/4 in

 Keyway Width 3/16 in

Keyway Depth 3/32 in

Maximum Bore Diameter 3/4 in

Length Through Bore 3/4 in

 Outside Diameter 1-5/8 in

Yoke Length 1-7/8 in

Overall Length 3-3/4 in

Number of Joints Single

Joint Type Pin & Block

Maximum Operating Angle 40°

Maximum Speed 1,750 RPM

Break Torque 4800 in-lb

Minimum Operating Temperature-35 °F

Maximum Operating Temperature 212 °F

Assembled Yes

Booted No

Screw Thread Size -

Country of Origin 100% Made in the USA
